MB AM5 MSI MPG X670E Carbon Wifi
MB AM5 MSI MPG X670E Carbon Wifi
MB AM5 MSI MPG X670E Carbon Wifi
MB AM5 MSI MPG X670E Carbon Wifi

Brend:MSIKategorija:Matične pločeŠifra proizvoda: KOM006538A00000

MB AM5 MSI MPG X670E Carbon Wifi

MP cena: 56.496 RSD

51.360 RSD

Ušteda: 5.136 RSD

* PDV je uključen u cenu

* Samo za online kupovinu i gotovinsko plaćanje

Očekivani rok isporuke je od 1 do 3 dana .

postexpress Dostava se plaća po cenovniku brze pošte Postexpress.
<
>
Dodaj u korpu
Brza i sigurna isporuka

Isporuka direktno do vaših vrata na vreme i u savršenom stanju.

Svi načini plaćanja

Svi proizvodi na našem sajtu mogu se platiti karticom, a vaša kupovina je sigurna!

Call centar podrška

Za sva pitanja i dodatne informacije, obratite se našem Call Centru na (011) 2771-300 i (069) 2771-300



Chipset AMD X670
CPU Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Socket AM5
Memory 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
1x Type-C Display port
Slot 3x PCI-E x16 slot
• Supports x16/x0/x4 or x8/x8/x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports x8/x0/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports x4/x0/x4 (For Ryzen™ 8500/ 8300 Series processors)
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
6x SATA 6G
• The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor
Multi-GPU AMD MULTI-GPU Support
RAID •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
•Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
*RAID 10 for M.2 NVMe storage devices is only supported by Ryzen™ 9000/7000 series processors.
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 2.0 ports (Rear)
4x USB 2.0 ports (Front)
4x USB 5Gbps Type A (Front)
6x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 10Gbps Type C (Front)
1x USB 20Gbps Type C (Rear)
LAN Realtek® RTL8125BG 2.5Gbps LAN
Internal IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Thermal Sensor connectors(T_SEN)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE 1x EZ LED Control switch
4x EZ Debug LED
1x 2-Digit Debug Code LED

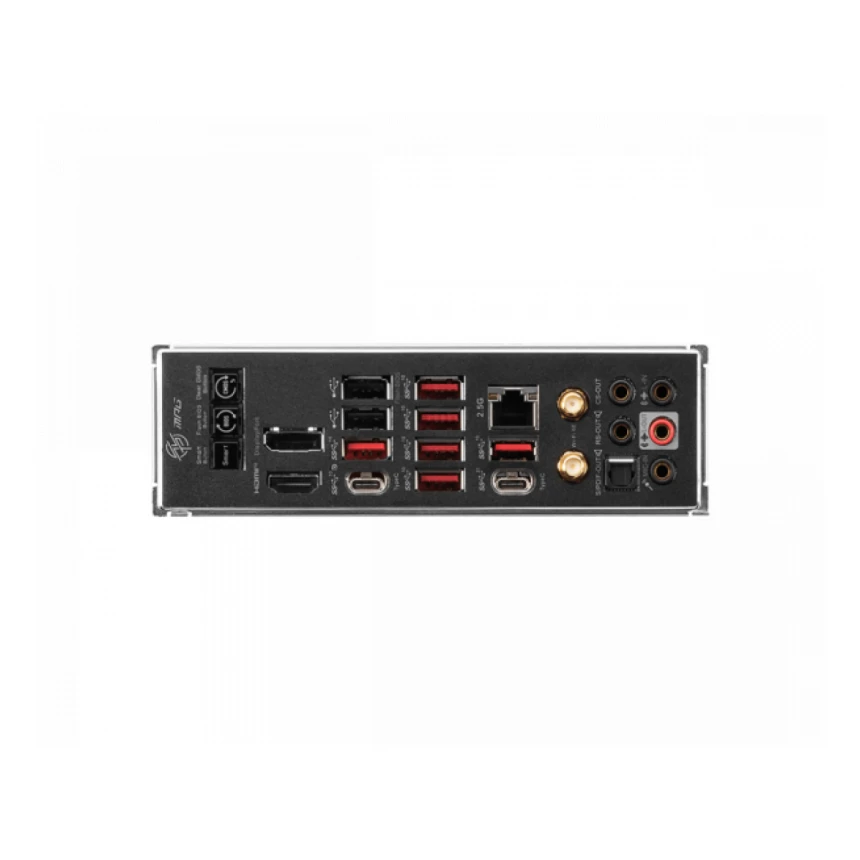

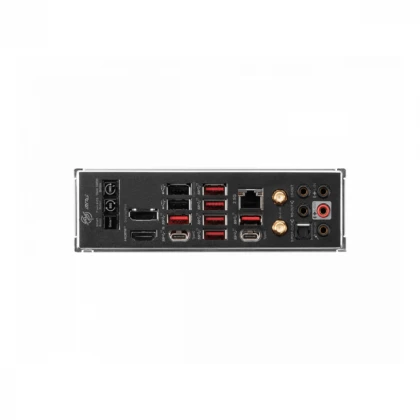

BACK PANEL PORTS
  1. Clear CMOS Button
  2. Flash BIOS Button
  3. DisplayPort
  4. USB 2.0
  5. 2.5G LAN
  6. Audio Connectors
  7. Smart Button
  8. HDMI™
  9. USB 10Gbps (Type-C Display port)
  10. USB 10Gbps (Type-A)
  11. USB 20Gbps (Type-C)
  12. Wireless / Bluetooth
  13. S/PDIF-Out
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
BOX CONTENT
PCB Info ATX
304.8mmx243.84mm



Link:https://www.msi.com/Motherboard/MPG-X670E-CARBON-WIFI/Specification



Hero Banner


Naziv proizvoda:

MB AM5 MSI MPG X670E Carbon Wifi

Zemlja porekla:

Kina

Uvoznik:

Podatak o uvozniku i zemlji porekla naveden je na deklaraciji proizvoda

Prava potrošača:

Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača.
