Standards and Protocols
|
IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
|
|
|
Basic Function
|
Full Duplex Flow Control (IEEE 802.3x)
|
|
|
Extends fiber distance up to 15km
|
||
|
Ports
|
1 1000M SC port
|
|
|
1 1000M RJ45 port (Auto MDI/MDIX)
|
||
|
Network Media
|
1000BASE-T
|
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
|
|
1000BASE-FX
|
Single-mode Fiber
|
|
|
LED Indicators
|
PWR, LINK, RX
|
|
|
Safety & Emission
|
FCC, CE
|
|
|
Dimensions (W*D*H)
|
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
|
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
|
Power Supply
|
External Power Adapter
|
|
|
Model NO.
|
Interface
|
Transmission Distance
|
Transmission Media
|
Output Center Wavelengt
|
|
MC200CM
|
RJ45--SC
|
0.55km(50/125um),
0.22km(62.5/125um)
|
Multi-mode Fiber,TP
|
850nm
|
|
MC210CS
|
RJ45--SC
|
15km
|
Single-mode Fiber,TP
|
1310nm
|
|
MC220L
|
RJ45--LC
|
0.55km /10km
|
Multi/Single-mode Fiber, TP
|
850nm/1310nm
|
Naziv proizvoda:

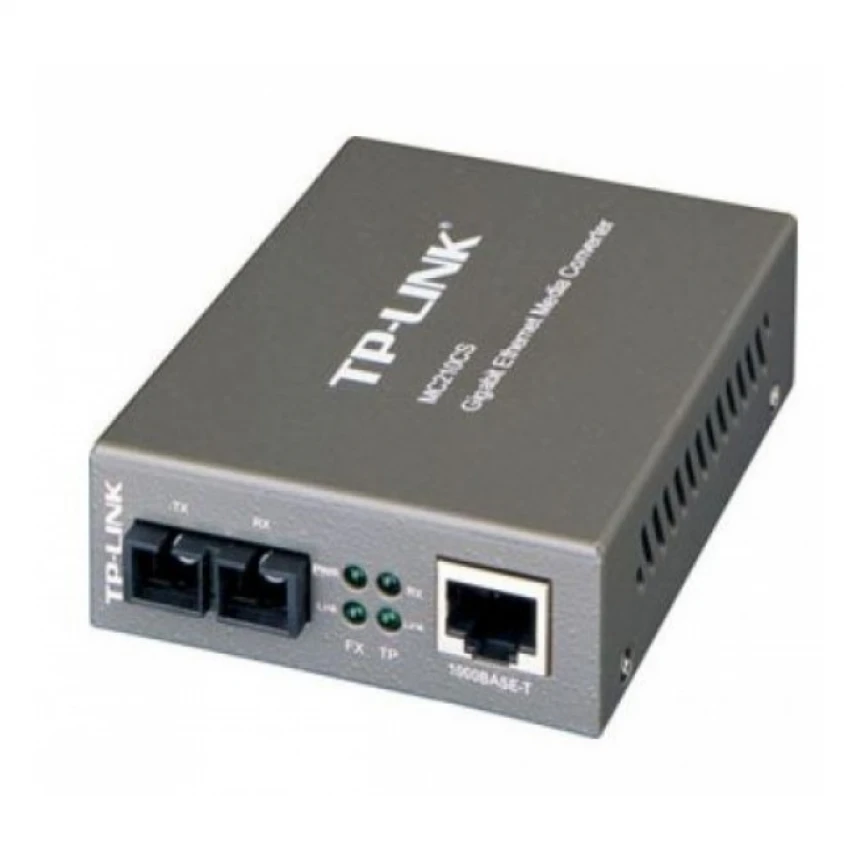

Konverter dometa TP-LINK MC210CS GigabitZemlja porekla:
KinaUvoznik:
Podatak o uvozniku i zemlji porekla naveden je na deklaraciji proizvodaPrava potrošača:
Zagarantovana sva prava kupaca po osnovu zakona o zaštiti potrošača.MP cena: 6.182 RSD
5.620 RSDUšteda: 562 RSD
* PDV je uključen u cenu
* Samo za online kupovinu i gotovinsko plaćanje
Očekivani rok isporuke je od 1 do 3 dana .
Dostava se plaća po cenovniku brze pošte Postexpress.Isporuka direktno do vaših vrata na vreme i u savršenom stanju.
Svi proizvodi na našem sajtu mogu se platiti karticom, a vaša kupovina je sigurna!
Za sva pitanja i dodatne informacije, obratite se našem Call Centru na (011) 2771-300 i (069) 2771-300
|
